Home / Product / Widen Series Deep Groove Ball Bearing / 62304 2RS Deep Groove Ball Bearing 20x52x21mm
  • 62304 2RS Deep Groove Ball Bearing 20x52x21mm
  • 62304 2RS Deep Groove Ball Bearing 20x52x21mm

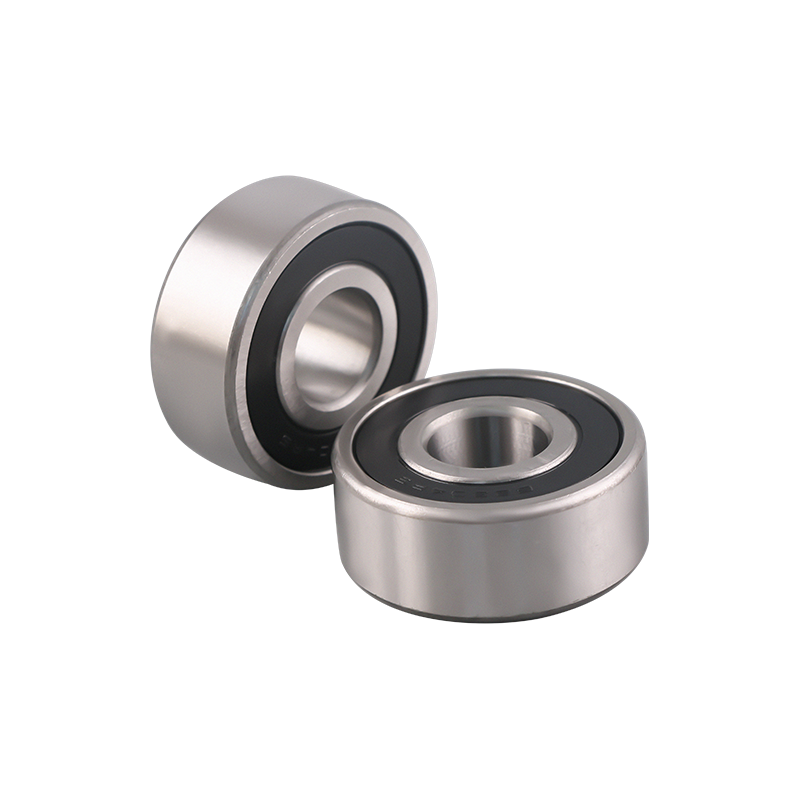

62304 2RS Deep Groove Ball Bearing 20x52x21mm

Specification

MODEL SIZE BASIC RATED LOAD WEIGHT
(reference)
kg
INNER DIAMETER(d)
mm
OUTER DIAMETER(D)
mm
WIDTH CHAMFER(r)
mm
DYNAMIC
Cr N
STATIC
Cor N
OPEN TYPE
mm
SHIELD TYPE
mm
62000 10 26 10 10 0.3 4160 1780 0.0220
62001 12 28 10 10 0.3 5110 2380 0.0260
62002 15 32 11 11 0.3 5590 2840 0.0390
62003 17 35 12 12 0.3 6000 3250 0.0450
62200 10 30 14 14 0.6 5110 2380 0.0400
62201 12 32 14 14 0.6 6180 3060 0.0460
62202 15 35 14 14 0.6 7450 3700 0.0560
62203 17 40 16 16 0.6 9560 4780 0.0850
62204 20 47 18 18 1 12840 6650
0.1280
62205 25 52 18 18 1 14020 7930 0.1460
62206 30 62 20 20 1 19460 11310 0.2420
62207 35 72 23 23 1.1 25670 15300 0.3450
62300 10 35 17 17 0.6 7640 3470 0.0600
62301 12 37 17 17 1 9700 4190 0.0740
62302 15 42 17 17 1 11400 5430 0.1100
62303 17 47 19 19 1 13580 6580 0.1490
62304 20 52 21 21 1.1 15940 7880 0.1970
62305 25 62 24 24 1.1 22380 11490 0.3200
62306 30 72 27 27 1.1 27000 15200 0.4850
62800 10 19 6 6 0.3 1590 750 0.0059
62803 17 26 6 6 0.3 2130 1360 0.0089
62805 25 37 8 8 0.3 3680 2630 0.0250
63800 10 19 7 7 0.3 1590 750 0.0074
63801 12 21 7 7 0.3 1910 1040 0.0085
63802 15 24 7 7 0.3 2070 1250 0.0100
63803 17 26 7 7 0.3 2130 1360 0.0110
63804 20 32 10 10 0.3 3480 2230 0.0240
63204 20 47 20.6 20.6 1 12840 6650 0.1500
63207 35 72 27 27 1.1 25670 15300 0.4350
63000 10 26 12 12 0.3 4160 1780 0.0250
63001 12 28 12 12 0.3 5110 1280 0.0290
63002 15 32 13 13 0.3 5590 2840 0.0420
63003 17 35 14 14 0.3 6000 3250 0.0510
63004 20 42 16 16 0.6 9390 5020 0.0880
63005 25 47 16 16 0.6 10060 5860 0.1000
63006 30 55 19 19 1 11900 7460 0.1590
63007 35 62 20 20 1 16210 10420 0.2100
63008 40 68 21 21 1 17030 11700 0.2590

Precision Class
Standard Precision Class
GB/T307.1 P0 P6 P5 P4
IS0492 CLASS0 CLASS6 CLASS5 CLASS4
AFBMA STD.20 ABEC1 ABEC3 ABEC5  ABEC7

Bearing Material
Chrome Steel: Chemical Composition of Chrome Steel,According to customer needs, stainless steel bearing materials avaiable
Steel No Chemical Composition%
C Si Mn P S Cr
GCr15 0.95-1.05 0.15-0.35 0.20-0.40 ≤0.027 ≤0.02 1.30-1.65

The Interchange of Chrome Steel No.
Country China ISO U.S.A Germany Japan Sweden
Bearings
Steel No.
GCr15 683/VXⅡ  (AISI)52100 (DIN)100Cr6 (Jis)SUJ2 SKF3

Professional manufacture of 62304 2RS Deep Groove Ball Bearing 20x52x21mm.

15

Years Of Experience

We are an international custom 62304 2RS Deep Groove Ball Bearing 20x52x21mm suppliers and OEM/ODM 62304 2RS Deep Groove Ball Bearing 20x52x21mm company, specialized in the manufacturing deep groove ball bearing. Not only advanced automated production equipment, strict enterprise management, excellent talent team, and strong technology, rigorous process, but also we have a large number of precision grinding machine, mainly use high-quality bearing steel "GCr15" as raw material, and low-carbon alloy steel as attached. The first inspection, Operator self-inspection, inspect all the sizes; Inspect sampling, factory finished product testing and other processes, custom 62304 2RS Deep Groove Ball Bearing 20x52x21mm quality has been Strict controlled. Our quality goal is the pursuit of excellence, achieve customer satisfaction.
We have professional design, development and manufacture of 62304 2RS Deep Groove Ball Bearing 20x52x21mm and deep groove ball bearings. Our leading products are widely used in micro-electromechanical, household appliances, electric fans, washing machines, motorcycles, electric vehicles, medical equipment, sports equipment, textile and agricultural machinery, and process decorations, sliding doors and windows, children′s toys, trolleys, Package, skates, scooters, fitness equipment, various types of machinery sector!
