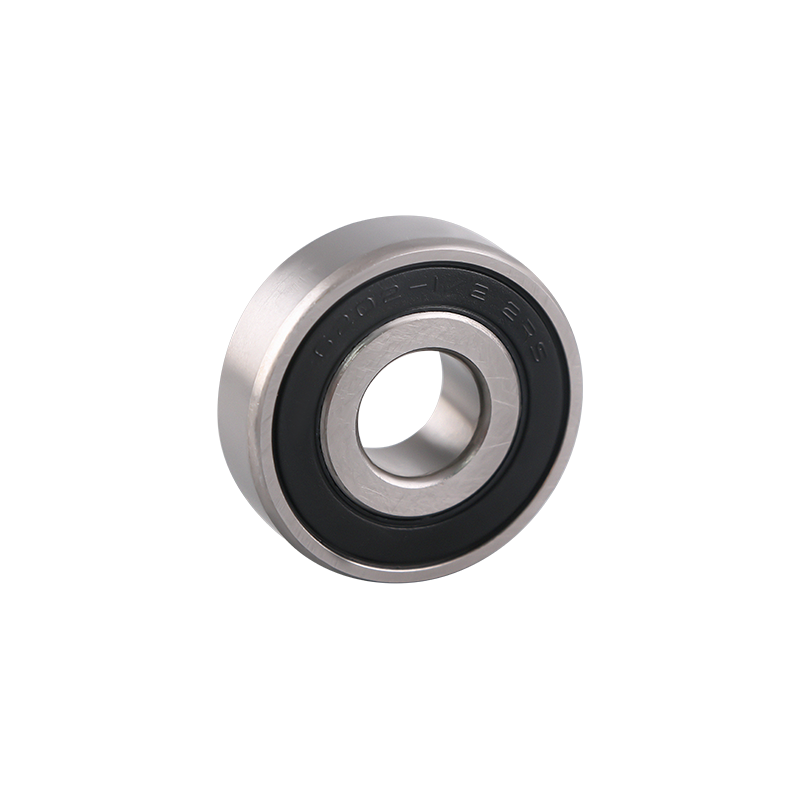

6201-16 ZZ/2RS Open 16x40x12mm Special Size Ball Bearing Deep Groove Ball Bearing

Specification

MODEL SIZE BASIC RATED LOAD WEIGHT
(reference)
kg
INNER DIAMETER(d)
mm
OUTER DIAMETER(D)
mm
WIDTH CHAMFER(r)
mm
DYNAMIC
Cr N
STATIC
Cor N
OPEN TYPE
mm
SHIELD TYPE
mm
6201-8 12.7 32 10 10 0.6 6180 3060 0.0333
6201-10 15.875 32 10 10 0.6 6180 3060 0.0300
6201-13 13 32 10 10 0.6 6180 3060 0.0330
6202-8 12.7 35 11 11 0.6 7450 3700 0.0475
6202-10 15.875 35 11 11 0.6 7450 3700 0.0420
6202-13 13 35 11 11 0.6 7450 3700 0.0472
6202-14 14 35 11 11 0.6 7450 3700 0.0465
6202-16 16 35 11 11 0.6 7450 3700 0.0420
6203-8 12.7 40 12 12 0.6 9560 4780 0.0730
6203-10 15.875 40 12 12 0.6 9560 4780 0.0660
6203-12 19.05 40 12 12 0.6 9560 4780 0.0580
6203-13 13 40 12 12 0.6 9560 4780 0.0727
6203-15 15 40 12 12 0.6 9560 4780 0.0665
6203-16 16 40 12 12 0.6 9560 4780 0.0660
6204-10 15.875 47 14 14 1 12840 6650 0.1115
6204-12 19.05 47 14 14 1 12840 6650 0.1100
99502H 15.875 34.925 11 11 0.6 7450 3700 0.0420

Precision Class
Standard Precision Class
GB/T307.1 P0 P6 P5 P4
IS0492 CLASS0 CLASS6 CLASS5 CLASS4
AFBMA STD.20 ABEC1 ABEC3 ABEC5  ABEC7

Bearing Material
Chrome Steel: Chemical Composition of Chrome Steel,According to customer needs, stainless steel bearing materials avaiable
Steel No Chemical Composition%
C Si Mn P S Cr
GCr15 0.95-1.05 0.15-0.35 0.20-0.40 ≤0.027 ≤0.02 1.30-1.65

The Interchange of Chrome Steel No.
Country China ISO U.S.A Germany Japan Sweden
Bearings
Steel No.
GCr15 683/VXⅡ  (AISI)52100 (DIN)100Cr6 (Jis)SUJ2 SKF3

Professional manufacture of 6201-16 ZZ/2RS Open 16x40x12mm Special Size Ball Bearing Deep Groove Ball Bearing.

15

Years Of Experience

We are an international custom 6201-16 ZZ/2RS Open 16x40x12mm Special Size Ball Bearing Deep Groove Ball Bearing suppliers and OEM/ODM 6201-16 ZZ/2RS Open 16x40x12mm Special Size Ball Bearing Deep Groove Ball Bearing company, specialized in the manufacturing deep groove ball bearing. Not only advanced automated production equipment, strict enterprise management, excellent talent team, and strong technology, rigorous process, but also we have a large number of precision grinding machine, mainly use high-quality bearing steel "GCr15" as raw material, and low-carbon alloy steel as attached. The first inspection, Operator self-inspection, inspect all the sizes; Inspect sampling, factory finished product testing and other processes, custom 6201-16 ZZ/2RS Open 16x40x12mm Special Size Ball Bearing Deep Groove Ball Bearing quality has been Strict controlled. Our quality goal is the pursuit of excellence, achieve customer satisfaction.
We have professional design, development and manufacture of 6201-16 ZZ/2RS Open 16x40x12mm Special Size Ball Bearing Deep Groove Ball Bearing and deep groove ball bearings. Our leading products are widely used in micro-electromechanical, household appliances, electric fans, washing machines, motorcycles, electric vehicles, medical equipment, sports equipment, textile and agricultural machinery, and process decorations, sliding doors and windows, children′s toys, trolleys, Package, skates, scooters, fitness equipment, various types of machinery sector!
