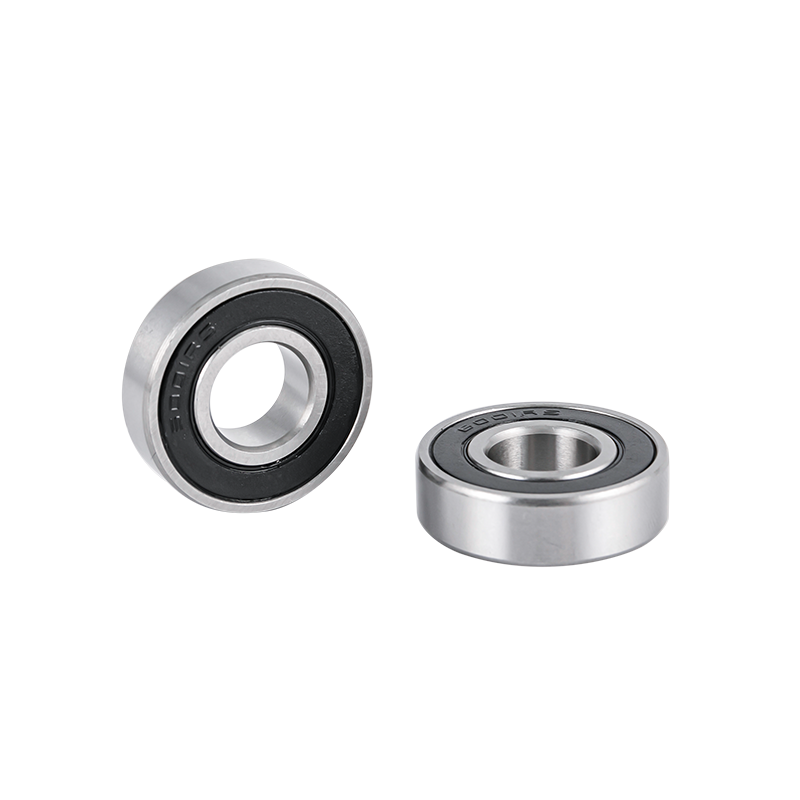

6005 ZZ/2RS Open 25x47x12mm High Cost Performance Bearings For Energy Industry Deep Groove Ball Bearing

Specification

MODEL SIZE BASIC RATED LOAD WEIGHT
(reference)
kg
INNER DIAMETER(d)
mm
OUTER DIAMETER(D)
mm
WIDTH CHAMFER(r)
mm
DYNAMIC
Cr N
STATIC
Cor N
OPEN TYPE
mm
SHIELD TYPE
mm
603 3 9 3 3 0.2 486 223 0.0014
604 4 12 4 4 0.2 960 350 0.0023
605 5 14 5 5 0.2 1070 420 0.0037
606 6 17 6 6 0.3 1960 730 0.0069
607 7 19 6 6 0.3 2800 1060 0.0082
608 8 22 7 7 0.3 3290 1360 0.0129
609 9 24 7 7 0.3 3330 1410 0.0160
6000 10 26 8 8 0.3 4160 1780 0.0190
6001 12 28 8 8 0.3 5110 2380 0.0220
6002 15 32 9 9 0.3 5590 2840 0.0300
6003 17 35 10 10 0.3 6000 3250 0.0390
6004 20 42 12 12 0.6 9390 5020 0.0690
6005 25 47 12 12 0.6 10060 5860 0.0800
6006 30 55 13 13 1 11900 7460 0.1160
6007 35 62 14 14 1 16210 10420 0.1550
6008 40 68 15 15 1 17030 11700 0.1920
6009 45 75 16 16 1 21080 14780 0.2450
6010 50 80 16 16 1 22000 16260 0.2610
6011 55 90 18 18 1.1 31500 18400 0.3840
6012 60 95 18 18 1.1 30000 23000 0.4260
6013 65 100 18 18 1.1 32000 25000 0.4280
6014 70 110 20 20 1.1 38000 31000 0.6200
6015 75 115 20 20 1.1 38000 31000 0.6300
6016 80 125 22 22 1.1 47500 40000 0.8600
6017 85 130 22 22 1.1 47500 40000 0.9350
6018 90 140 24 24 1.5 63800 59000 1.3800
6019 95 145 24 24 1.5 66700 62300 1.5000
6020 100 150 24 24 1.5 72500 70000 1.6300
6022 110 170 28 28 2 80000 78900 2.3500
6024 120 180 28 28 2 81000 81000 2.6200
6026 130 200 33 33 2 96800 100000 4.5500
6028 140 210 33 33 2 123700 130000 4.2100
6030 150 225 35 35 2.1 132000 125000 3.9000
6032 160 245 38 38 2.1 145000 138000 5.8900
6034 170 260 42 42 2.1 170000 170000 6.5000
6036 180 280 46 46 2.1 188000 198000 8.5100
6038 190 290 46 46 2.1 188000 200000 8.8600
6040 200 310 51 51 2.1 205000 225000 11.640
6044 220 340 56 56 3 252000 268000 18.000
6048 240 360 56 56 3 270000 292000 20.000
6052 260 400 65 65 4 292000 372000 28.200
6056 280 420 65 65 4 305000 408000 32.100

Precision Class
Standard Precision Class
GB/T307.1 P0 P6 P5 P4
IS0492 CLASS0 CLASS6 CLASS5 CLASS4
AFBMA STD.20 ABEC1 ABEC3 ABEC5  ABEC7

Bearing Material
Chrome Steel: Chemical Composition of Chrome Steel,According to customer needs, stainless steel bearing materials avaiable
Steel No Chemical Composition%
C Si Mn P S Cr
GCr15 0.95-1.05 0.15-0.35 0.20-0.40 ≤0.027 ≤0.02 1.30-1.65

The Interchange of Chrome Steel No.
Country China ISO U.S.A Germany Japan Sweden
Bearings
Steel No.
GCr15 683/VXⅡ  (AISI)52100 (DIN)100Cr6 (Jis)SUJ2 SKF3

Professional manufacture of 6005 ZZ/2RS Open 25x47x12mm High Cost Performance Bearings For Energy Industry Deep Groove Ball Bearing.

15

Years Of Experience

We are an international custom 6005 ZZ/2RS Open 25x47x12mm High Cost Performance Bearings For Energy Industry Deep Groove Ball Bearing suppliers and OEM/ODM 6005 ZZ/2RS Open 25x47x12mm High Cost Performance Bearings For Energy Industry Deep Groove Ball Bearing company, specialized in the manufacturing deep groove ball bearing. Not only advanced automated production equipment, strict enterprise management, excellent talent team, and strong technology, rigorous process, but also we have a large number of precision grinding machine, mainly use high-quality bearing steel "GCr15" as raw material, and low-carbon alloy steel as attached. The first inspection, Operator self-inspection, inspect all the sizes; Inspect sampling, factory finished product testing and other processes, custom 6005 ZZ/2RS Open 25x47x12mm High Cost Performance Bearings For Energy Industry Deep Groove Ball Bearing quality has been Strict controlled. Our quality goal is the pursuit of excellence, achieve customer satisfaction.
We have professional design, development and manufacture of 6005 ZZ/2RS Open 25x47x12mm High Cost Performance Bearings For Energy Industry Deep Groove Ball Bearing and deep groove ball bearings. Our leading products are widely used in micro-electromechanical, household appliances, electric fans, washing machines, motorcycles, electric vehicles, medical equipment, sports equipment, textile and agricultural machinery, and process decorations, sliding doors and windows, children′s toys, trolleys, Package, skates, scooters, fitness equipment, various types of machinery sector!
