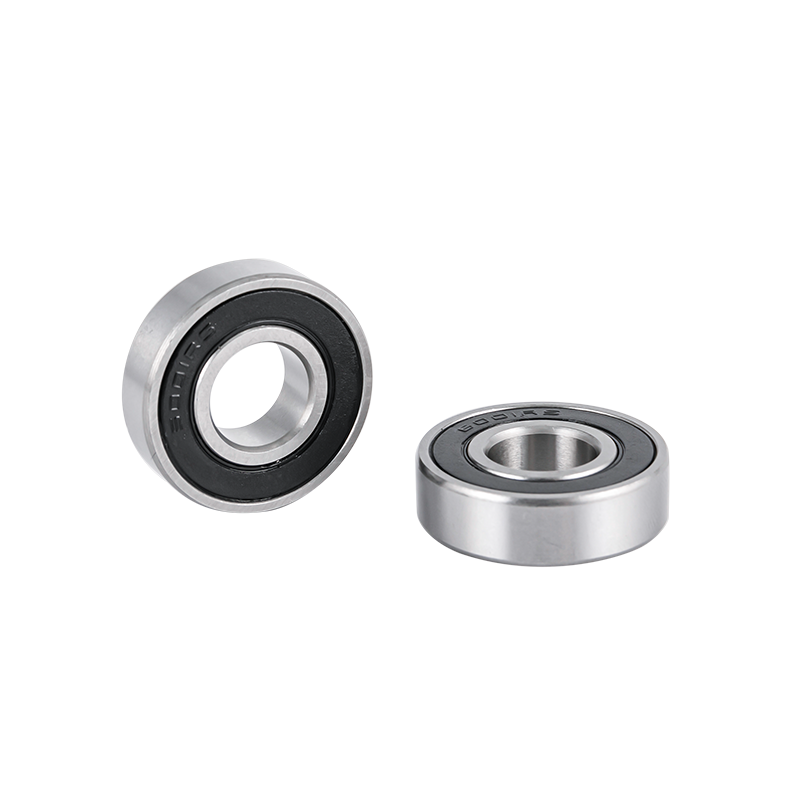

6002 ZZ/2RS Open 15x32x9mm P6 High Quality Bearing ABEC 3 Deep Groove Ball Bearing

Specification

MODEL	SIZE					BASIC RATED LOAD		WEIGHT (reference) kg
	INNER DIAMETER(d) mm	OUTER DIAMETER(D) mm	WIDTH		CHAMFER(r) mm	DYNAMIC Cr N	STATIC Cor N
	INNER DIAMETER(d) mm	OUTER DIAMETER(D) mm	OPEN TYPE mm	SHIELD TYPE mm	CHAMFER(r) mm	DYNAMIC Cr N	STATIC Cor N
603	3	9	3	3	0.2	486	223	0.0014
604	4	12	4	4	0.2	960	350	0.0023
605	5	14	5	5	0.2	1070	420	0.0037
606	6	17	6	6	0.3	1960	730	0.0069
607	7	19	6	6	0.3	2800	1060	0.0082
608	8	22	7	7	0.3	3290	1360	0.0129
609	9	24	7	7	0.3	3330	1410	0.0160
6000	10	26	8	8	0.3	4160	1780	0.0190
6001	12	28	8	8	0.3	5110	2380	0.0220
6002	15	32	9	9	0.3	5590	2840	0.0300
6003	17	35	10	10	0.3	6000	3250	0.0390
6004	20	42	12	12	0.6	9390	5020	0.0690
6005	25	47	12	12	0.6	10060	5860	0.0800
6006	30	55	13	13	1	11900	7460	0.1160
6007	35	62	14	14	1	16210	10420	0.1550
6008	40	68	15	15	1	17030	11700	0.1920
6009	45	75	16	16	1	21080	14780	0.2450
6010	50	80	16	16	1	22000	16260	0.2610
6011	55	90	18	18	1.1	31500	18400	0.3840
6012	60	95	18	18	1.1	30000	23000	0.4260
6013	65	100	18	18	1.1	32000	25000	0.4280
6014	70	110	20	20	1.1	38000	31000	0.6200
6015	75	115	20	20	1.1	38000	31000	0.6300
6016	80	125	22	22	1.1	47500	40000	0.8600
6017	85	130	22	22	1.1	47500	40000	0.9350
6018	90	140	24	24	1.5	63800	59000	1.3800
6019	95	145	24	24	1.5	66700	62300	1.5000
6020	100	150	24	24	1.5	72500	70000	1.6300
6022	110	170	28	28	2	80000	78900	2.3500
6024	120	180	28	28	2	81000	81000	2.6200
6026	130	200	33	33	2	96800	100000	4.5500
6028	140	210	33	33	2	123700	130000	4.2100
6030	150	225	35	35	2.1	132000	125000	3.9000
6032	160	245	38	38	2.1	145000	138000	5.8900
6034	170	260	42	42	2.1	170000	170000	6.5000
6036	180	280	46	46	2.1	188000	198000	8.5100
6038	190	290	46	46	2.1	188000	200000	8.8600
6040	200	310	51	51	2.1	205000	225000	11.640
6044	220	340	56	56	3	252000	268000	18.000
6048	240	360	56	56	3	270000	292000	20.000
6052	260	400	65	65	4	292000	372000	28.200
6056	280	420	65	65	4	305000	408000	32.100

Precision Class

Standard	Precision Class
GB/T307.1	P0	P6	P5	P4
IS0492	CLASS0	CLASS6	CLASS5	CLASS4
AFBMA STD.20	ABEC1	ABEC3	ABEC5	ABEC7

Bearing Material

Chrome Steel: Chemical Composition of Chrome Steel，According to customer needs, stainless steel bearing materials avaiable

Steel No	Chemical Composition%
Steel No	C	Si	Mn	P	S	Cr
GCr15	0.95-1.05	0.15-0.35	0.20-0.40	≤0.027	≤0.02	1.30-1.65

The Interchange of Chrome Steel No.

Country	China	ISO	U.S.A	Germany	Japan	Sweden
Bearings Steel No.	GCr15	683/VXⅡ	(AISI)52100	(DIN)100Cr6	（Jis）SUJ2	SKF3

Professional manufacture of 6002 ZZ/2RS Open 15x32x9mm P6 High Quality Bearing ABEC 3 Deep Groove Ball Bearing.

Years Of Experience

We are an international custom 6002 ZZ/2RS Open 15x32x9mm P6 High Quality Bearing ABEC 3 Deep Groove Ball Bearing suppliers and OEM/ODM 6002 ZZ/2RS Open 15x32x9mm P6 High Quality Bearing ABEC 3 Deep Groove Ball Bearing company, specialized in the manufacturing deep groove ball bearing. Not only advanced automated production equipment, strict enterprise management, excellent talent team, and strong technology, rigorous process, but also we have a large number of precision grinding machine, mainly use high-quality bearing steel "GCr15" as raw material, and low-carbon alloy steel as attached. The first inspection, Operator self-inspection, inspect all the sizes; Inspect sampling, factory finished product testing and other processes, custom 6002 ZZ/2RS Open 15x32x9mm P6 High Quality Bearing ABEC 3 Deep Groove Ball Bearing quality has been Strict controlled. Our quality goal is the pursuit of excellence, achieve customer satisfaction.
We have professional design, development and manufacture of 6002 ZZ/2RS Open 15x32x9mm P6 High Quality Bearing ABEC 3 Deep Groove Ball Bearing and deep groove ball bearings. Our leading products are widely used in micro-electromechanical, household appliances, electric fans, washing machines, motorcycles, electric vehicles, medical equipment, sports equipment, textile and agricultural machinery, and process decorations, sliding doors and windows, children′s toys, trolleys, Package, skates, scooters, fitness equipment, various types of machinery sector!
