Home / Product / 16000 Series Deep Groove Ball Bearing / 16101 ZZ/2RS Open 12x30x8mm Chrome Steel Bearings For Machine Deep Groove Ball Bearing
  • 16101 ZZ/2RS Open 12x30x8mm Chrome Steel Bearings For Machine Deep Groove Ball Bearing
  • 16101 ZZ/2RS Open 12x30x8mm Chrome Steel Bearings For Machine Deep Groove Ball Bearing

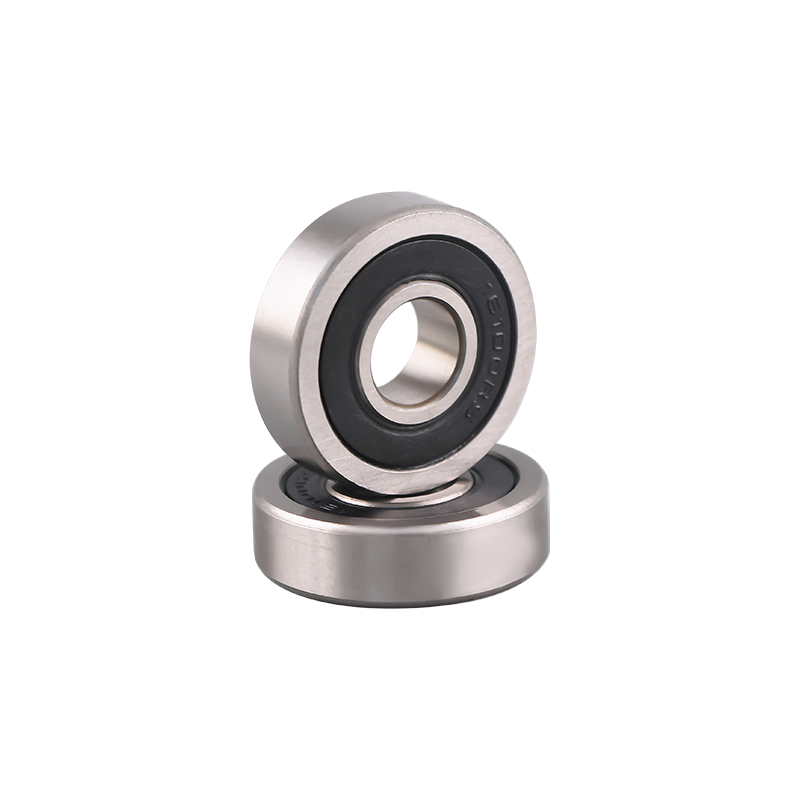

16101 ZZ/2RS Open 12x30x8mm Chrome Steel Bearings For Machine Deep Groove Ball Bearing

Specification

MODEL SIZE BASIC RATED LOAD WEIGHT
(reference)
kg
INNER DIAMETER(d)
mm
OUTER DIAMETER(D)
mm
WIDTH CHAMFER(r)
mm
DYNAMIC
Cr N
STATIC
Cor N
OPEN TYPE
mm
SHIELD TYPE
mm
16100 10 28 8 8 0.3 5110 2380 0.0220
16101 12 30 8 8 0.3 5110 2380 0.0230
16001 12 28 7 7 0.3 4320 2250 0.0240
16002 15 32 8 8 0.3 5590 2840 0.0250
16003 17 35 8 8 0.3 6000 3250 0.0320
16004 20 42 8 8 0.3 6340 3790 0.0500
16005 25 47 8 8 0.3 6940 4600 0.0600
16006 30 55 9 9 0.3 9950 6530 0.0850
16007 35 62 9 9 0.3 10820 7830 0.1100
16008 40 68 9 9 0.3 11590 9130 0.1250
16009 45 75 10 10 0.6 11830 9880 0.1700
16010 50 80 10 10 0.6 12510 11100 0.1800
16011 55 90 11 11 0.6 19300 16300 0.2600
16012 60 95 11 11 0.6 20000 17500 0.2800
16013 65 100 11 11 0.6 21200 17800 0.3000

Precision Class
Standard Precision Class
GB/T307.1 P0 P6 P5 P4
IS0492 CLASS0 CLASS6 CLASS5 CLASS4
AFBMA STD.20 ABEC1 ABEC3 ABEC5  ABEC7

Bearing Material
Chrome Steel: Chemical Composition of Chrome Steel,According to customer needs, stainless steel bearing materials avaiable
Steel No Chemical Composition%
C Si Mn P S Cr
GCr15 0.95-1.05 0.15-0.35 0.20-0.40 ≤0.027 ≤0.02 1.30-1.65

The Interchange of Chrome Steel No.
Country China ISO U.S.A Germany Japan Sweden
Bearings
Steel No.
GCr15 683/VXⅡ  (AISI)52100 (DIN)100Cr6 (Jis)SUJ2 SKF3

Professional manufacture of 16101 ZZ/2RS Open 12x30x8mm Chrome Steel Bearings For Machine Deep Groove Ball Bearing.

15

Years Of Experience

We are an international custom 16101 ZZ/2RS Open 12x30x8mm Chrome Steel Bearings For Machine Deep Groove Ball Bearing suppliers and OEM/ODM 16101 ZZ/2RS Open 12x30x8mm Chrome Steel Bearings For Machine Deep Groove Ball Bearing company, specialized in the manufacturing deep groove ball bearing. Not only advanced automated production equipment, strict enterprise management, excellent talent team, and strong technology, rigorous process, but also we have a large number of precision grinding machine, mainly use high-quality bearing steel "GCr15" as raw material, and low-carbon alloy steel as attached. The first inspection, Operator self-inspection, inspect all the sizes; Inspect sampling, factory finished product testing and other processes, custom 16101 ZZ/2RS Open 12x30x8mm Chrome Steel Bearings For Machine Deep Groove Ball Bearing quality has been Strict controlled. Our quality goal is the pursuit of excellence, achieve customer satisfaction.
We have professional design, development and manufacture of 16101 ZZ/2RS Open 12x30x8mm Chrome Steel Bearings For Machine Deep Groove Ball Bearing and deep groove ball bearings. Our leading products are widely used in micro-electromechanical, household appliances, electric fans, washing machines, motorcycles, electric vehicles, medical equipment, sports equipment, textile and agricultural machinery, and process decorations, sliding doors and windows, children′s toys, trolleys, Package, skates, scooters, fitness equipment, various types of machinery sector!
